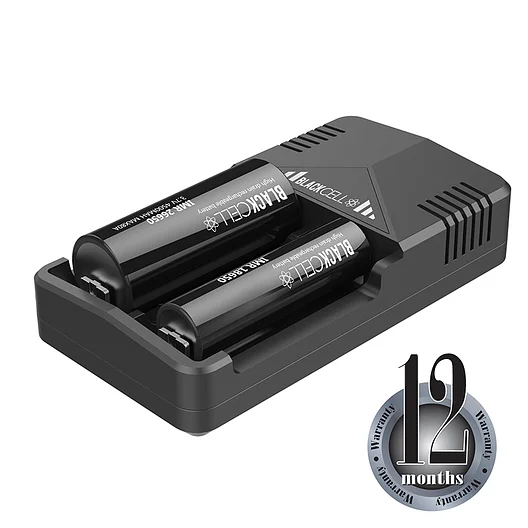

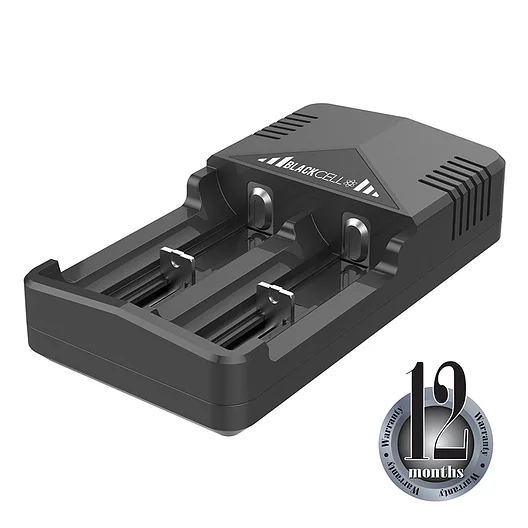

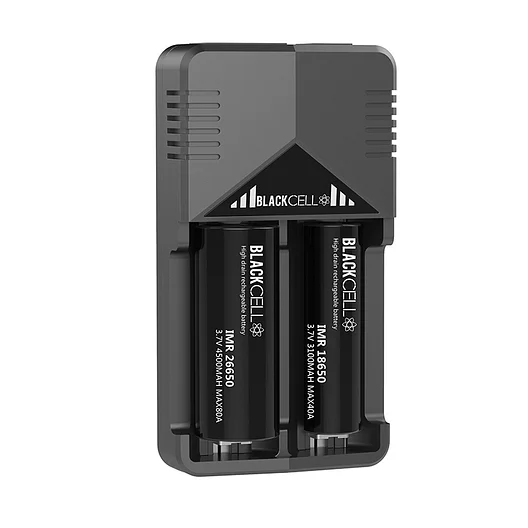

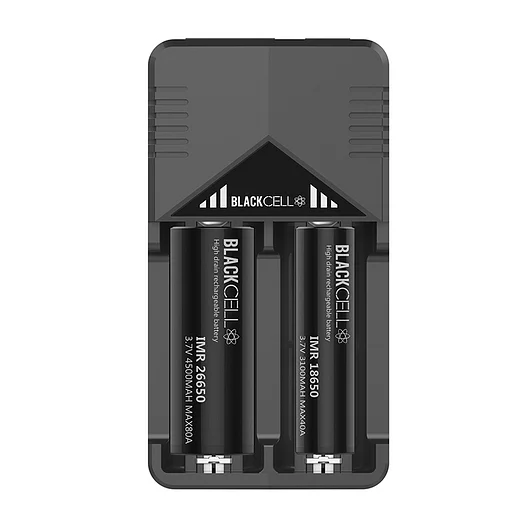

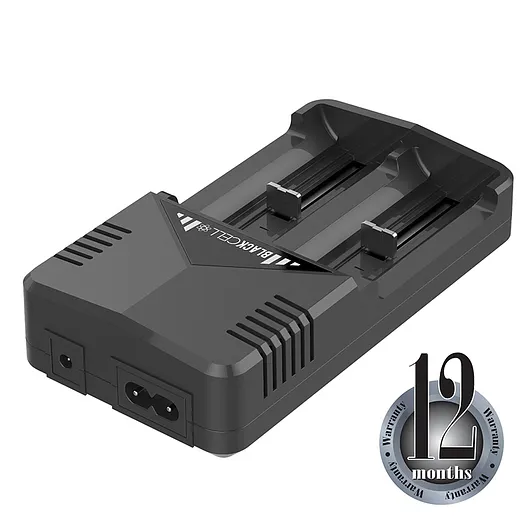

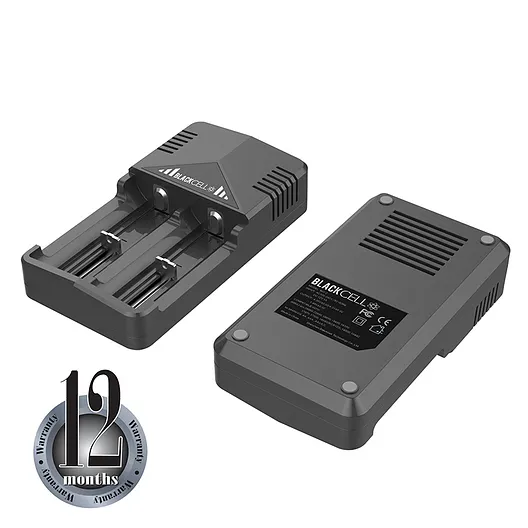

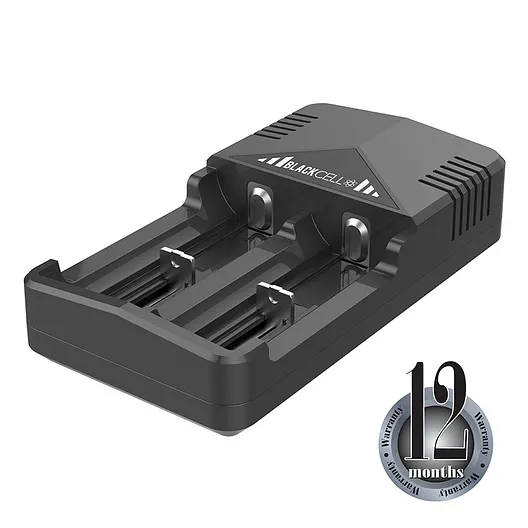

Blackcell BIC-2 Wall Charger
The BIC-2 is a smart charger compatible with most of the cylindrical rechargeable batteries on the market.
The BIC-2’s auto-detection system can automatically detect Li-ion, Ni-MH and Ni-Cd batteries as well as select the optimal charging mode for each battery detected. The BIC-2 has six independent digital LEDs which clearly display the active charging process of each cell.
Dimensions
131.5mm*70.5mm*33.0mm
Weight: 106g (without batteries and power cord)
Features
- Compatible with Li-ion, IMR, Ni-MH and Ni-Cd rechargeable batteries.
- 12V DC car charging system compatible.
- Microcontroller charging slots capable of simultaneous charging.
- Automated battery type detection.
- Voltage and charge modes adjustable independently.
- Integrated reverse polarity and short circuit protection.
- Integrated overcharging, overheating, overvoltage, overcurrent, and discharge protections.
- Designed for optimal heat dissipation.
- Automatic charge cut off.
- Certified by CE, RoHS, and FCC.
Specification
| Input | AC100-240V/50-60Hz DC 12V 1A |
| Output voltage | 4.2V±0.02V/1.43V±0.02V 6V±0.02V/1.43V±0.02V |
| Output current | 1000mA/2000mA |
| Constant charging voltage, cutoff current | ＜100mA |
| External power source standby current | ＜15.0mA |
Precautions
- The BIC-2 chargers restrictions only allow the charging of Li-ion IMR and Ni-MH/Ni-Cd rechargeable batteries. The BIC-2 should not be used to charge any other battery types, as this may cause battery failure, explosion, property damage, and/or personal injury.
- The BIC-2 charger should only be used indoors or inside a motor vehicle. Under no circumstances should it be exposed to water, high humidity, and low or high ambient temperatures.
- Do not disassemble or modify the charger.
- The BIC-2 should only be operated with AC voltage, between 100-240V.
- No BlackCell products are intended for use by anyone under the age of 18.
- The safe operating temperatures are between 0°C-35°C 32°F-95°F.
- Do not drop or rest heavy items on the unit.
- If any problems arise with either the batteries or charger, unplug the power cord immediately.
- DC input, working power supply 12V-1A.
Warranty
The warranty is void in any situation below:
The BIC-2 Charger can be exchanged for a replacement by authorized distributors within 180 days If there are any product issues.
- If the product(s) is/are broken, reconstructed and modified.
- If the product(s) is/are damaged by leakage of batteries.
- The product(s) is/are damaged by improper use.
The BIC-2’s auto-detection system can automatically detect Li-ion, Ni-MH and Ni-Cd batteries as well as select the optimal charging mode for each battery detected. The BIC-2 has six independent digital LEDs which clearly display the active charging process of each cell.
Dimensions
131.5mm*70.5mm*33.0mm
Weight: 106g (without batteries and power cord)
Features
- Compatible with Li-ion, IMR, Ni-MH and Ni-Cd rechargeable batteries.
- 12V DC car charging system compatible.
- Microcontroller charging slots capable of simultaneous charging.
- Automated battery type detection.
- Voltage and charge modes adjustable independently.
- Integrated reverse polarity and short circuit protection.
- Integrated overcharging, overheating, overvoltage, overcurrent, and discharge protections.
- Designed for optimal heat dissipation.
- Automatic charge cut off.
- Certified by CE, RoHS, and FCC.
Specification
| Input | AC100-240V/50-60Hz DC 12V 1A |
| Output voltage | 4.2V±0.02V/1.43V±0.02V 6V±0.02V/1.43V±0.02V |
| Output current | 1000mA/2000mA |
| Constant charging voltage, cutoff current | ＜100mA |
| External power source standby current | ＜15.0mA |
Precautions
- The BIC-2 chargers restrictions only allow the charging of Li-ion IMR and Ni-MH/Ni-Cd rechargeable batteries. The BIC-2 should not be used to charge any other battery types, as this may cause battery failure, explosion, property damage, and/or personal injury.
- The BIC-2 charger should only be used indoors or inside a motor vehicle. Under no circumstances should it be exposed to water, high humidity, and low or high ambient temperatures.
- Do not disassemble or modify the charger.
- The BIC-2 should only be operated with AC voltage, between 100-240V.
- No BlackCell products are intended for use by anyone under the age of 18.
- The safe operating temperatures are between 0°C-35°C 32°F-95°F.
- Do not drop or rest heavy items on the unit.
- If any problems arise with either the batteries or charger, unplug the power cord immediately.
- DC input, working power supply 12V-1A.
Warranty
The warranty is void in any situation below:
The BIC-2 Charger can be exchanged for a replacement by authorized distributors within 180 days If there are any product issues.
- If the product(s) is/are broken, reconstructed and modified.
- If the product(s) is/are damaged by leakage of batteries.
- The product(s) is/are damaged by improper use.
