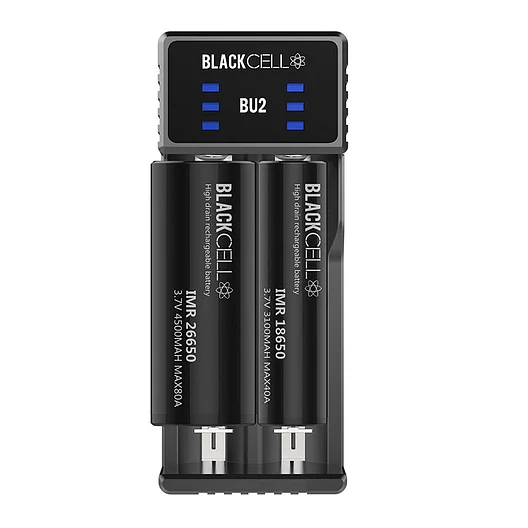

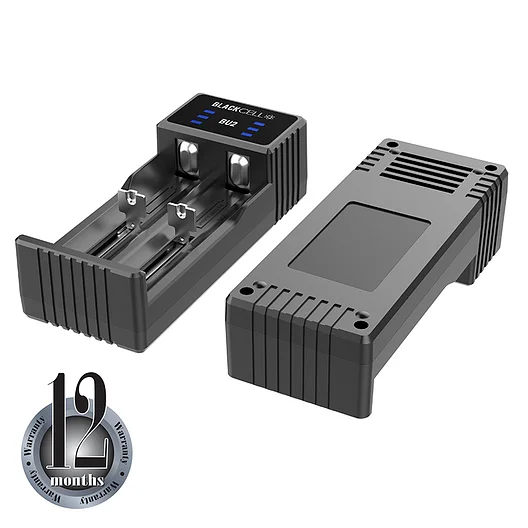

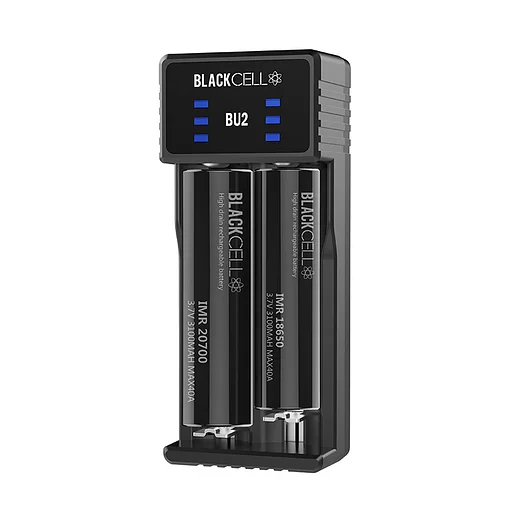

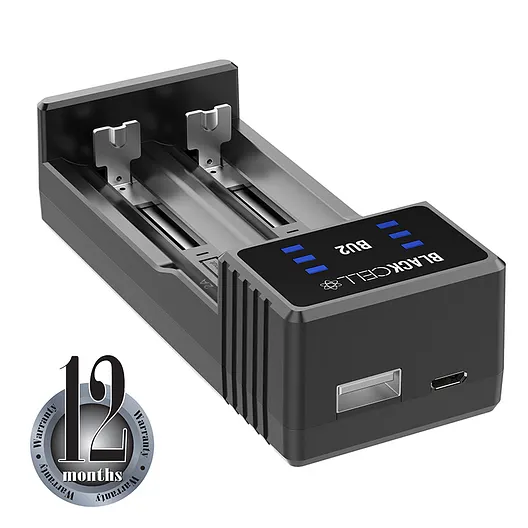

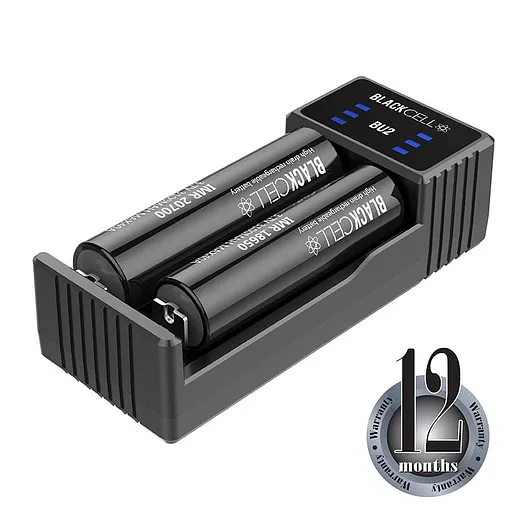

Blackcell BU2 USB Charger

The BU2’s USB output function allows the charger to be used as an external charging station whilst the automatic detection system can detect Li-ion, Ni-MH and Ni-Cd batteries as well as selecting the best charging mode for each battery. The BU2 has three LED display lights, which clearly display the current charging operations.

USB Output

• USB output load voltage: 4.90-5.30V
• Output current: 1000mA
• Floating current: ＜1mA
• When load current is 1000mA, USB output voltage is 4.75-5.25V
• Cutoff output protected voltage: 3.0±0.1V

Features

• Compatible with Li-ion, Ni-MH and Ni-Cd rechargeable batteries.
• 5V/1000mA USB automatic identification output, as standard.
• Two independent, micro-controlled charging slots allow for simultaneous charging.
• Battery type and status automatically detected.
• Select the appropriate voltage and charge mode.
• Features reverse polarity and short circuit protection.
• Integrated overcharging, overheating, overvoltage, overcurrent, and discharge protections.
• Optimally designed for heat dissipation.
• Certified by CE, RoHS, and FCC.
• 3 LEDs display the charging status. (30% 70% 100%)
• When no batteries are installed, the three LEDs will flash and then off one after the other when the charger connected to a power source.
• When a faulty battery is inserted, the three LEDs will flash at the same time to alert you.
• During the charging process, the three LEDs light up one by one, and will all remain light up until the charging is completed.
• 1A or 2A input, Intelligent chip, automatically stop charging when batteries are fully charged.
• Fully charged testing: -DV, 0DV testing charging time controlling, maximum voltage testing.

Precautions

• The product is for use specifically with Lithium, Ni-Cd and Ni-MH batteries only. Charging other batteries can potentially lead to an explosion, broken or leaking batteries, personal injury or property damage.
• Incorrect use of the charger may lead to an electric shock.
• The BU2 charger should only be used indoors or inside a vehicle. Under no circumstances should it be exposed to water, high humidity, and low or high ambient temperatures.
• Do not disassemble or modify the charger.
• Please use appropriate AC voltage 100-240V.
• No BlackCell products are intended for use by anyone under the age of 18.
• The safe operating temperatures are between 0°C-35 °C 32°F-95°F.
• Do not drop or rest heavy items on the unit.
• If any problems arise with either the batteries or charger, unplug the power cord immediately.

Warranty

The BU2 Charger can be exchanged for a replacement by authorized distributors within 180 days of purchase, should any issues arise.

The warranty is invalid in any situation below:

1. The product(s) is/are broken, reconstructed and modified.
2. The product(s) is/are damaged by leakage of batteries.
3. The product(s) is/are damaged by improper use.
